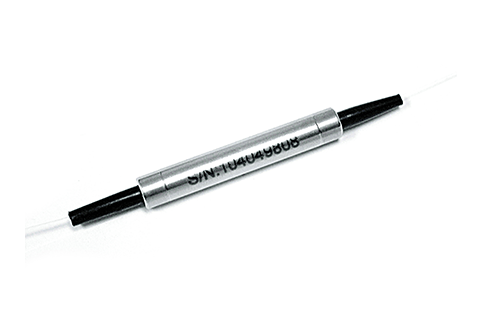

Hybrid

Features: Low Loss; High Isolation; Low Polarization Sensitivity; Excellent Stability

Applications: Fiber Optic Amplifier; CATV and Laser Industry; Long Haul Network

Parameters		Unit	Single Stage	Dual Stage
Signal Wavelength Range (λs)		nm	1528 – 1565
Pump Wavelength Range (λp)		nm	965 – 995 or 1470-1490
Insertion Loss at λs		dB	≤1.2	≤1.3
Isolation at λs (-5~70°C)		dB	≥21	≥36
Transmission Isolation at λp		dB	≥30	≥30
Reflection Isolation of at λs		dB	≥15	≥15
Insertion Loss at λp		dB	≤0.6	≤0.8
Polarization Dependent Loss		dB	≤0.1	≤0.15
Polarization Mode Dispersion		ps	≤0.25	≤0.05
Return Loss		dB	≥50	≥50
Directivity		dB	≥55	≥55
Fiber Type		-	See scheme for choice
Dimension	Bare Fiber	mm	φ5.5x35
Dimension	900um Loose tube	mm	φ5.5x40
